Three Phase 63A 510mm2+20.5mm2 EV Charger Cable AC EV Wire

Short Description:

63A Three Phase Charging Wire for EV (Electric Vehicle) ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.

Rated current: 63Amp 3Phase

Operating voltage: 450V / 750V AC

Insulation resisitance: >1000MΩ

Therminal temperature rise: <50K

Withstand voltage: 2000V

Working temperature:: -30°C ~+50°C

Send email to us

Product Detail

Product Tags

5G10mm²+2*0.5mm² EV Wire AC EV Cable Leads

Parameters

● Model: 3Phase 63A wire for EV charging
● SPEC: 5*10mm²+2*0.5mm²
● Reference Standard: TUV 2PfG 1908
● Reted current: 63A
● Working voltage: 450/750V AC
● Bebding Radius: ≥ 8D
● Retarding Test: IEC60332-1
● Smoke Density: IEC61034, EN50268-2
● Stewed acid gas release quantity: IEC670754-1, EN50267-2-1
● Heat, cold, wear-resisting to ozone ultraviolet light
● Working temperature: -45°C ~+ 125°C
● CE, TUV, UL approved

63A Three Phase Charging Wire for EV (Electric Vehicle)

● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; Cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, etc.

● This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.

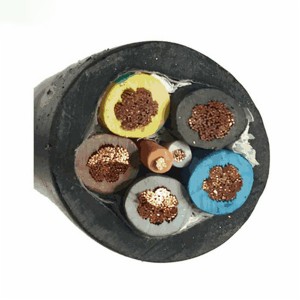

Physical Properties
Conductor	Conductor Size		EV07EE-H 5G10+2X0.5mm2
	Construction Item		10mm2	0.5mm2
	Construction	mm	323/0.20±0.008	28/0.15±0.008
	Material	—	Bare Copper Wire
	O.D	mm	4.50	1.10
Insulation	Material/材质	mm	TPE
	Avg.Thickness	mm	1.20	0.60
	Min.Thickness	mm	1.00	0.45
	Insulation O.D	—	7.0±0.2mm	2.2±0.2mm
	Color		Brown, Blue, Yellow/Green	Black,Green
Coverage		%	Non-woven fabric,100% Coverage wit!, 25% Overlapping
Jacket	Material	—	TPE
	Avg.Thickness	mm	3.60
	Min.Thick	mm	3.00
	Cable O.D	mm	26.3±0.5mm
	Color	—	Orange or Black
Marking			TüV 2 PfG 1908 EV07EE-H 5G10mm2+2×0.5mm2 450V/750V EV Cable
Electric Characters
Reference Standard		V	TüV 2 PfG 1908/05.12
Rated Voltage		V	AC 450/750V
Temperature Rating		℃	-40℃ ~ +125℃
Max.Conductor Resistance at 20℃		Ω/KM	10mm2 ≤2.00 Ω/KM & 0.5mm2 ≤39.0 Ω/KM Max at 20℃
Reference Current		A	32A
Cold Bend Test		—	‘-40±2′C x 4H No Breakdown
Tensile Strength		N/mm2	Insulation≥10N/mm2 ,Sheath≥10N/mm2
Flame test		—	IEC 60332-1
Heat ,Cold,Wear,UV Resistance,Waterproof and Higher the mechanical strength
