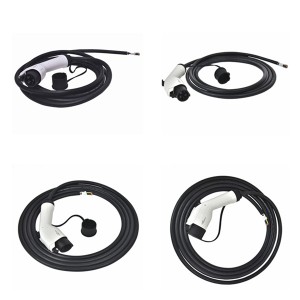

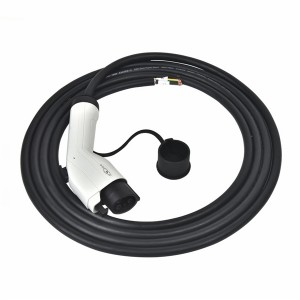

16A 32A Type1 EV Tethered Cable J1772 Plug with 5m Cable

Short Description:

Reliability of materials,antiflaming,pressure-resistant, abrasion resistance,impact resistance and high oil


  • Rated current: 16A, 32A
  • Operating voltage: 120V /240V DC
  • Insulation resistance : >1000MΩ
  • Terminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Waterproof degree: IP55
  • Contact impedance: 0.5MΩ Max
  • Product Detail

    Product Tags

    Insulation Resistance >1000MΩ(DC 500V)
    Withstand Voltage 2000V
    Pin Material Copper Alloy, Silver Plating
    Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
    Mechanical Life No-Load Plug In  / Pull Out >10000 Times
    Contact Resistance 0.5mΩ Max
    Terminal Temperature Rise <50K
    Operating Temperature -30°C~+50°C
    Impact Insertion Force >300N
    Waterproof Degree IP55
    Cable Protection Reliability of materials,antiflaming,pressure-resistant, abrasion resistance,impact resistance and high oil
    Flame Retardant Grade TUV,UL,CE Approved
    Model Rated Current Cable Specification Cable Color Cable Length
             HY-EVA-16AP 16Amp 3 X 2.5mm² + 2 X 0.5mm² Black
    Orange
    Green
    (5Meter ,10Meter)
    customized
    3 X 14AWG+1 X 18AWG
    HY-EVA-32AP 32Amp 3 X 6mm²+ 2 X 0.5mm²
    3 X 10AWG+1 X 18AWG
    HY-EVA-40AP 40Amp 2 X 8AWG + 1 X 10AWG + 1 X 16AWG
    HY-EVA-50AP 50Amp 2 X 8AWG + 1 X 10AWG + 1 X 16AWG
    HY-EVA-80AP 80Amp 2 X 5AWG + 1 X 6AWG + 1 X 16AWG
