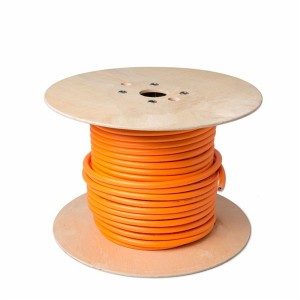

11KW 3Phase 16A 5*2.5mm2+2*0.5mm2 EV Charging Cable AC EV Wire

Short Description:

5G2.5mm²+2*0.5mm² EV Wire AC EV Cable Leads.16A Three Phase Charging Wire for EV (Electric Vehicle) ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.


  • Rated current:: 16Amp 3phase
  • Operating voltage: 450V / 750V AC
  • Insulation resisitance: >1000MΩ
  • Therminal temperature rise: <50K
  • Withstand voltage: 2000V
  • Working temperature: -30°C ~+50°C
  • Product Detail

    Product Tags

    5G2.5mm²+2*0.5mm² EV Wire AC EV Cable Leads

    Parameters

    ● Model: 3Phase 16A wire for EV charging
    ● SPEC: 5*2.5mm²+2*0.5mm²
    ● Reference Standard: TUV 2PfG 1908
    ● Reted current: 16A 11KW
    ● Working voltage: 450/750V AC
    ● Bebding Radius: ≥ 8D
    ● Retarding Test: IEC60332-1
    ● Smoke Density: IEC61034, EN50268-2
    ● Stewed acid gas release quantity: IEC670754-1, EN50267-2-1
    ● Heat, cold, wear-resisting to ozone ultraviolet light
    ● Working temperature: -45°C ~+ 125°C
    ● CE, TUV, UL approved

    16A Three Phase Charging Wire for EV (Electric Vehicle) ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.

    16A Three Phase Charging Wire for EV (Electric Vehicle)

    ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; Cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, etc.

    ● This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.

    Physical Properties

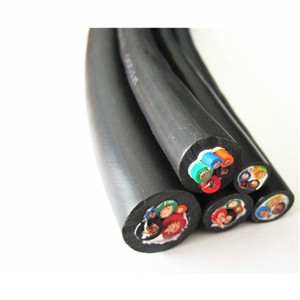

    Conductor Conductor Size EV07EE-H  5G2.5+2X0.5mm2
    Construction Item 2.5mm2 0.5mm2
    Construction mm 140/0.15±0.008 28/0.15±0.008
    Material Bare Copper Wire
    O.D mm 2.40 0.91
    Insulation Material mm TPE
    Avg.Thickness mm 0.90 0.60
    Min.Thickness mm 0.71 0.45
    Insulation O.D 4.2±0.15mm 2.2±0.15mm
    Color Brown, Blue, Yellow/Green Black,Green
    Coverage % Non-woven fabric,100% Coverage wit!, 25% Overlapping
    Jacket Material TPE
    Avg.Thickness mm 2.00
    Min.Thick mm 1.60
    Cable O.D mm 14.6±0.5mm
    Color Orange or Black
    Marking          TüV 2 PfG 1908 EV07EE-H 5G2.5mm2+2×0.5mm2 450V/750V  EV Cable
    Electric Characters
    Reference Standard V TüV 2 PfG 1908/05.12
    Rated Voltage V AC  450/750V
    Temperature Rating -40℃ ~ +125℃
    Max.Conductor Resistance at 20℃ Ω/KM 2.5mm2 ≤7.98 Ω/KM & 0.5mm2 ≤39.0 Ω/KM Max at 20℃
    Reference Current A 16A
    Cold Bend Test   ‘-40±2′C x 4H No Breakdown
    Tensile Strength N/mm2 Insulation≥10N/mm2 ,Sheath≥10N/mm2
    Flame test IEC 60332-1
    Heat ,Cold,Wear,UV Resistance,Waterproof and Higher the mechanical strength
