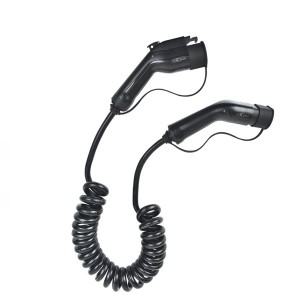

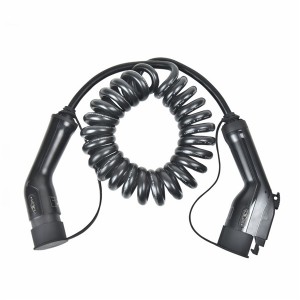

16A 32A Type 1 to Type 2 Spiral Cable EV Charging EVSE Electric Car Charger

Short Description:

16A 32A Type 1 to Type 2 Spiral Cable EV Charging EVSE Electric Car Charger.We can customise the colour of the rechargeable gun case to suit your needs. The colours available now are white and black, which are the regular products. If you need other colours, we have certain requirements for the minimum order quantity of the product, for example when you order more than 1000PCS at one time, we can mould the colour of the rechargeable gun into blue, yellow or other colours according to your requirements. We will send you some samples to confirm before the official production, to prevent the colour difference between the actual colour and the one you want due to the colour difference in the photos or videos taken.


  • Rated Current: 16A ,32Amp
  • Operating Voltage: 110V~250AC
  • Insulation Resisitance: >1000MΩ
  • Therminal Temperature rise: <50K
  • Withstand Voltage: 2000V
  • Product Detail

    Product Tags

    Rated Current 16Amp 32Amp
    Operation Voltage AC  250V
    Insulation Resistance >1000MΩ  ( DC 500V )
    Withstand Voltage 2000V
    Pin Material Copper Alloy, Silver Plating
    Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
    Mechanical Life No-Load Plug In  / Pull Out >10000 Times
    Contact Resistance 0.5mΩ Max
    Terminal Temperature Rise <50K
    Operating Temperature -30°C~+50°C
    Impact Insertion Force >300N
    Waterproof Degree IP55
    Cable Protection Reliability of materials,antiflaming,pressure-resistant,
    abrasion resistance,impact resistance and high oil
    Certification TUV, UL , CE Approved
    Model Rated Current Cable Specification Cable Color Cable Length
    HENGYI-EVAE-16A 16 Amp 3 X 2.5mm² + 2 X 0.5mm² Black
    Orange
    Green
    (5Meter ,10Meter)
    The length of the cable
    can be customized
    3x14AWG+1X18AWG
    HENGYI-EVAE-32A 32 Amp 3 X 6mm²+2 X 0.5mm²
    3x10AWG+1X18AWG
