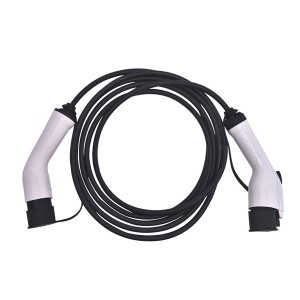

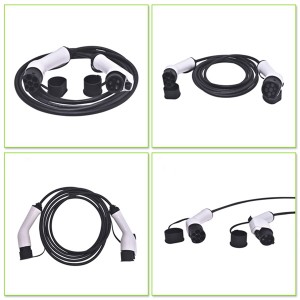

16A 32A Type1 to Type2 EV Charging Cable EVSE Electric Car Charging Station

Short Description:

16A 32A Type1 to Type2 EV Charging Cable EVSE Electric Car Charging Station.Our EV charging cables are manufactured in a rigorous process for reliable quality, comply with EU RoHs and are CE and TUV certified. The material is TPU, which controls the outer diameter and keeps the cable soft when bent, and is also resistant to abrasion, oil, ozone, ageing, radiation and low temperatures, ensuring that the product can be used in a variety of environments and has excellent universality.


  • Rated Current: 16A ,32Amp
  • Operating Voltage: 110V~250AC
  • Insulation Resisitance: >1000MΩ
  • Therminal Temperature rise: <50K
  • Withstand Voltage: 2000V
  • Product Detail

    Product Tags

    Rated Current 16Amp 32Amp
    Operation Voltage AC  250V
    Insulation Resistance >1000MΩ  ( DC 500V )
    Withstand Voltage 2000V
    Pin Material Copper Alloy, Silver Plating
    Shell Material Thermoplastic,Flame Retardant Grade UL94 V-0
    Mechanical Life No-Load Plug In  / Pull Out >10000 Times
    Contact Resistance 0.5mΩ Max
    Terminal Temperature Rise <50K
    Operating Temperature -30°C~+50°C
    Impact Insertion Force >300N
    Waterproof Degree IP55
    Cable Protection Reliability of materials,antiflaming,pressure-resistant,
    abrasion resistance,impact resistance and high oil
    Certification TUV, UL , CE Approved
    Model Rated Current Cable Specification Cable Color Cable Length
    HENGYI-EVAE-16A 16 Amp 3 X 2.5mm² + 2 X 0.5mm² Black
    Orange
    Green
    (5Meter ,10Meter)
    The length of the cable
    can be customized
    3x14AWG+1X18AWG
    HENGYI-EVAE-32A 32 Amp 3 X 6mm²+2 X 0.5mm²
    3x10AWG+1X18AWG
