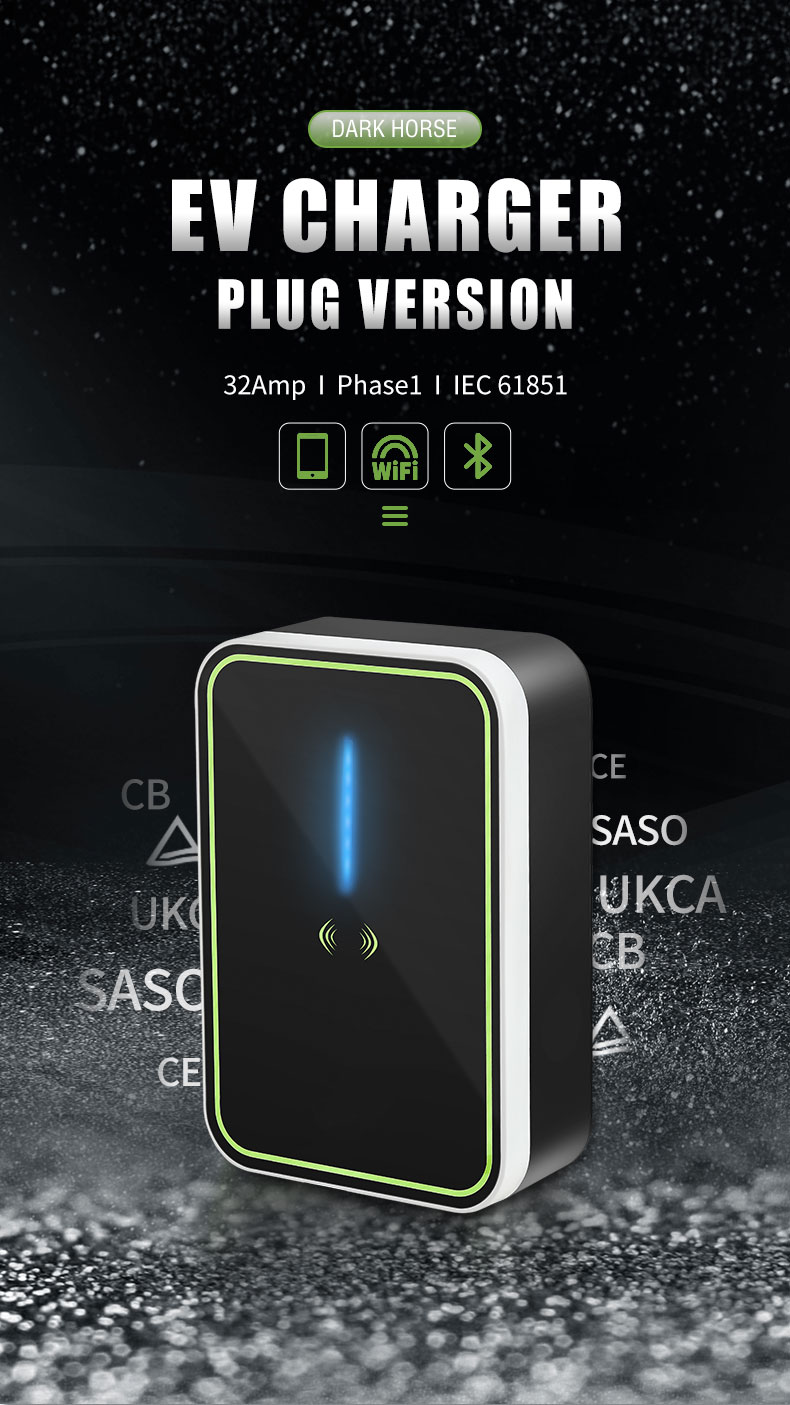

HENGYI EV Charger 32A Wallbox Electric Vehicle Charging Station with Type 2 SOCKET 7KW 1 Phase IEC 62196-2

Short Description:

The EVSE 32A IEC 61851 220V,casing colours available in black and white, customised casing colours and charging string lengths available for larger orders. Compatible with IEC 61851 , Designed with safety in mind, there are protection mechanisms forover-current,over-voltage andover-temperature problems, with a aggregate of 8 safety measures to cover the device and the auto during charging. The casing is made of ABS PC injection moulding and has a fire standing of UL94V_0. The factors of the main board are handed in well- known manufacturers, with dependable quality. The main control MCU is characterised by low power consumption, high performance and high integration. The operating temperature covers-40 °C-85 °C, which can meet the harsh working terrain.The EV charging string is made of high chastity bobby with excellent electrical conductivity, slow heating of the captain during high current charging and long operating time. The external cover is made of high quality cable, which is resistant to erosion and low temperatures, so that the charging string won’t harden due to low temperatures and help the device from working duly. Easy to install, it’s recommended to use hard wiring for the input power string. The installation height of the charging device is about1.5 M from the ground. a hook is included to store the ev charging string.


  • Dimension: 350(H) × 240(W) × 95(D)mm
  • User Interface: Indicator light

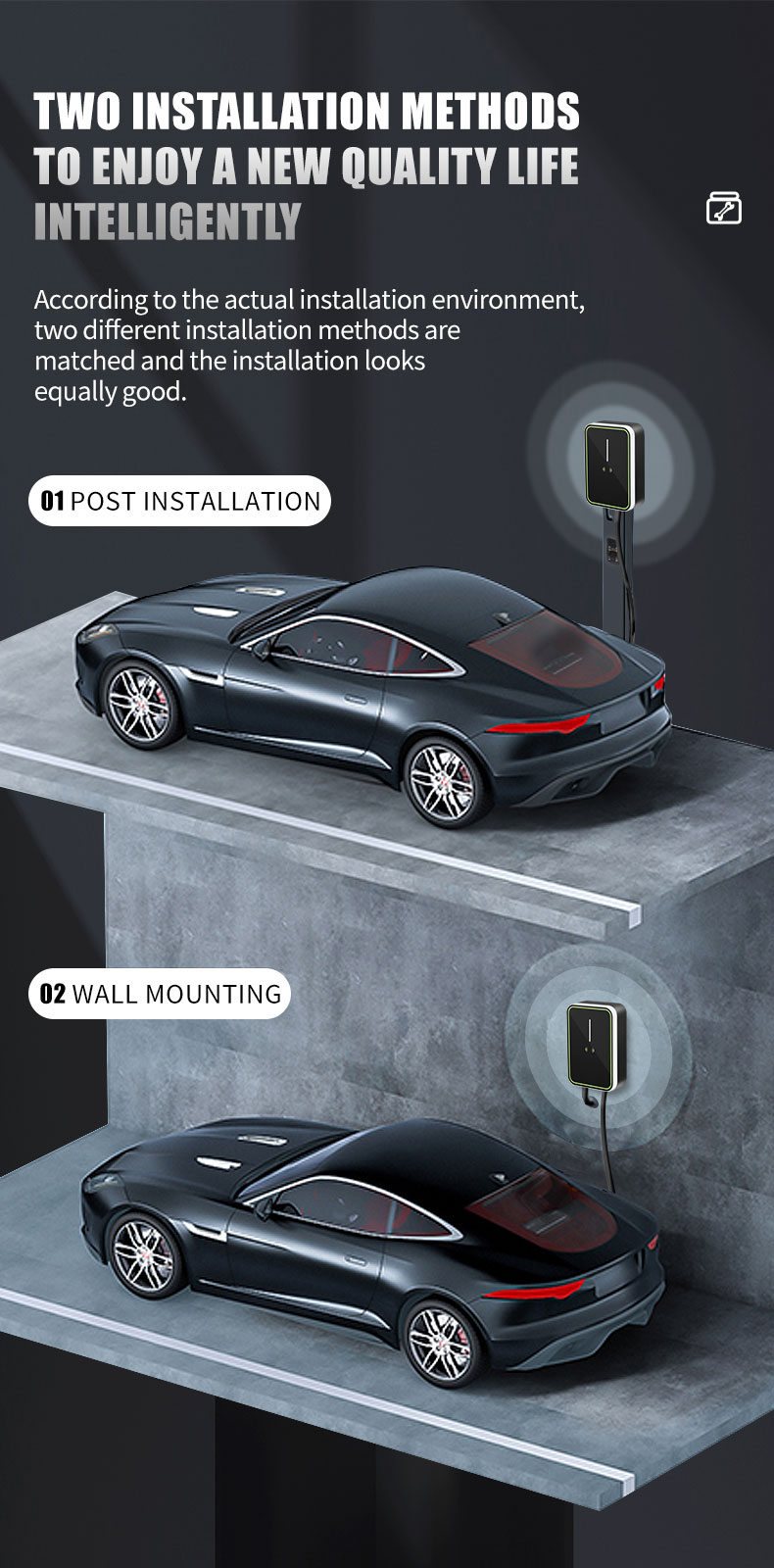

  • Installation method: Wall-mounted Type/Floor-standing Type Installation
  • Wiring method: Bottom enter&out
  • Cable length: INPUT CABLE 1M
  • Weight: 7.0kg (no charging gun)
  • Input voltage: 220V
  • Power rating: 7KW
  • Output voltage: AC220±20%
  • Output current: 32A
  • Design standard: IEC 61851
  • Product Detail

    RELATED VIDEOS

    Product Tags

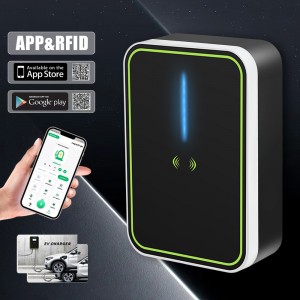

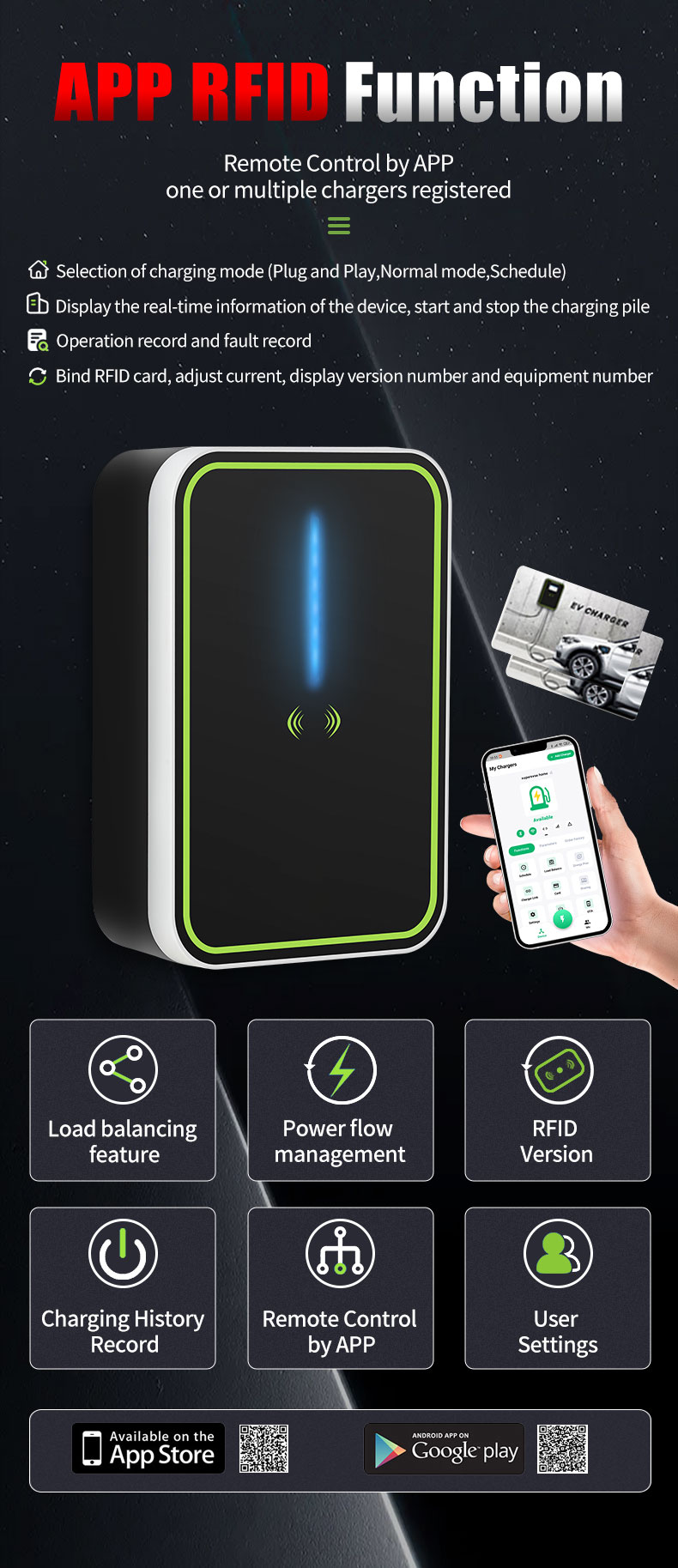

    Dark Horse AC electric car charger 7KW is in an elegant design. It follows IEC 61851, 7KW, 220V, 32A, 3 functions optional such as plug and plays/ RFID card authorization/APP make it very suitable for home charging. High performance charging control board of our best 7KW EVSE is compatible with all styles of electric vehicle charging. Leakage protection , Upgrade to Type A 30mA AC (single phase)  and IP65 waterproof and UV protection ABS casing ensure trustability and safety. It provides customers with quality, security and a friendly charging experience.

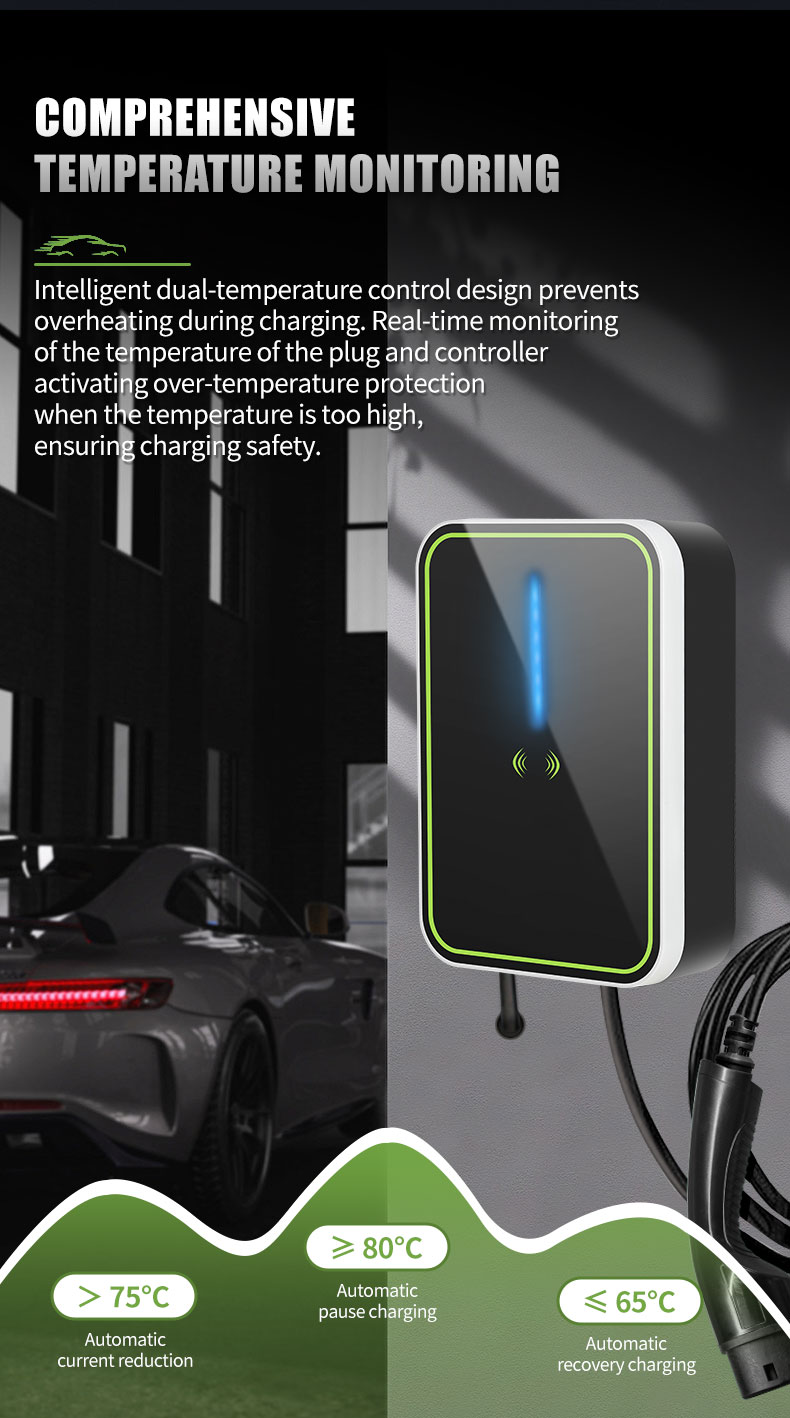

    Multiple Protections Ensure Safe Use – Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

    Flame retardant material – Anti-combustion, using flame-retardant materials to prevent accidents

    HIGH QUALITY – CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

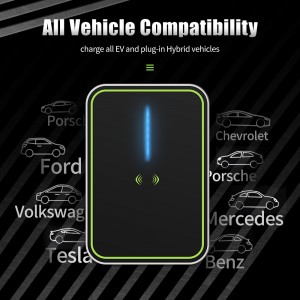

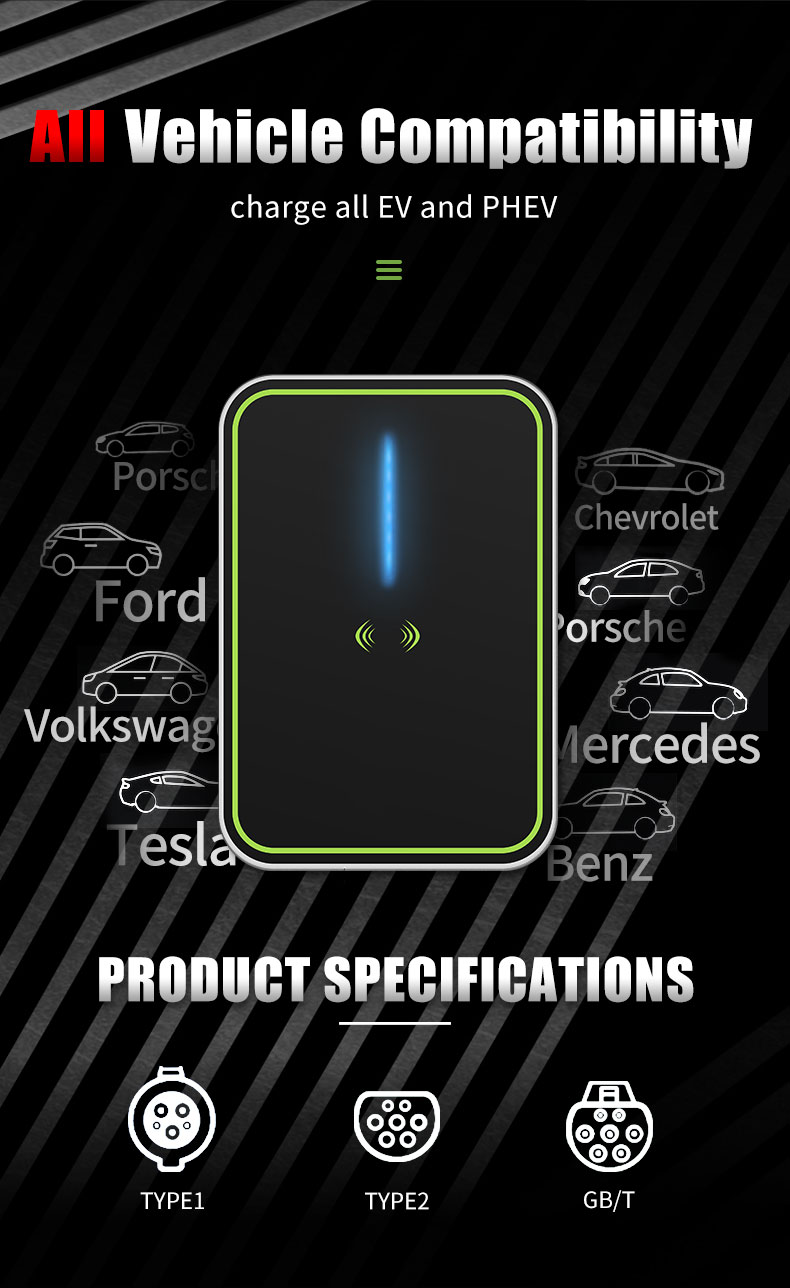

    UNIVERSAL – The charger is IEC 61851 compliant and capable of charging hybrid/plug-in electric vehicles.

    Weatherproof for Outdoor or Indoor Use – Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

    Safe & Secure – Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

    Professional customer service – HENGYI’s customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!



    Structure Appearance

    Dimension

    350(H) × 240(W) × 95(D)mm

    User Interface

    Indicator light

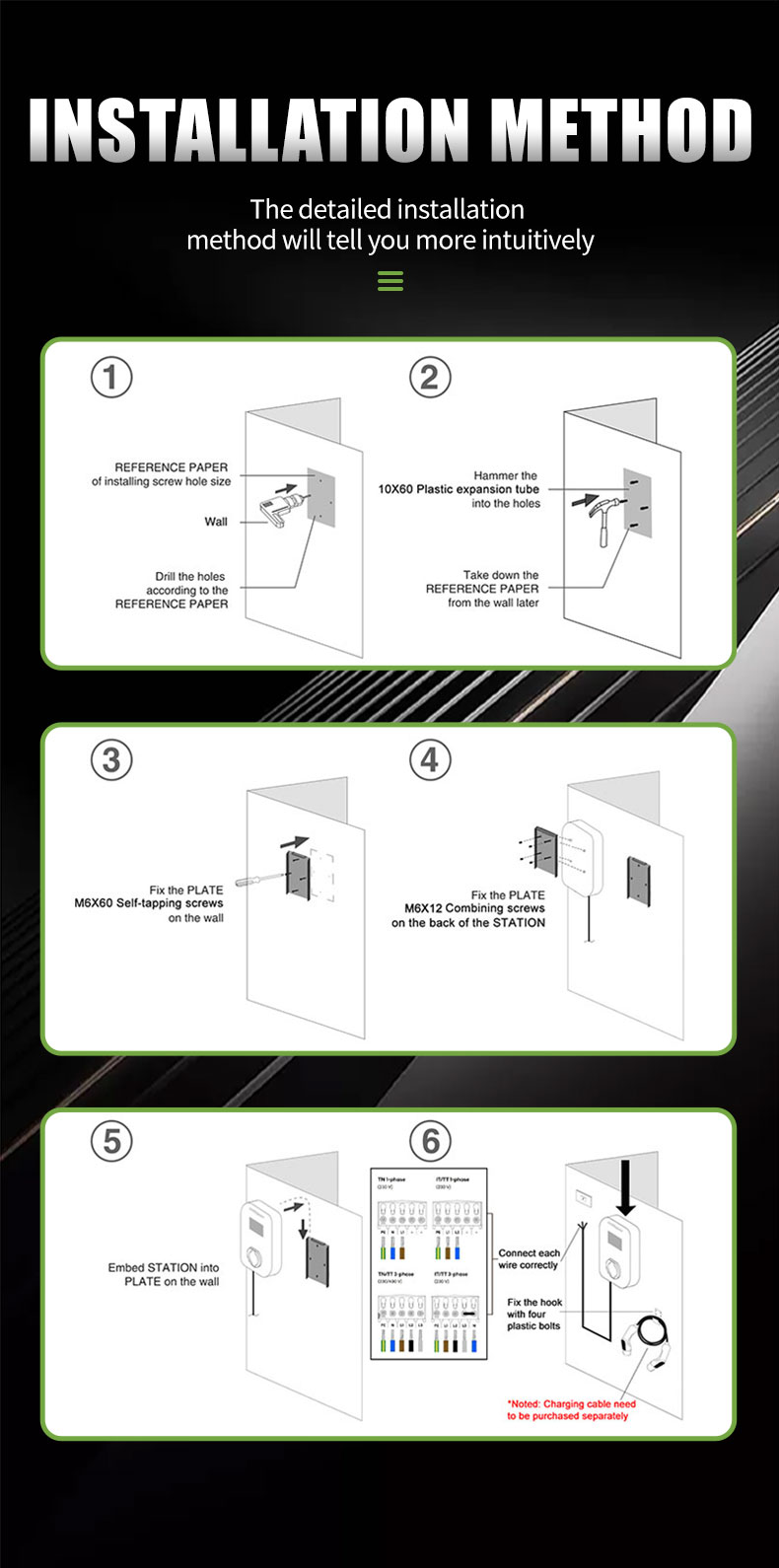

    Installation method

    Wall-mounted Type/Floor-standing Type Installation

    Wiring method

    Bottom enter&out

    Cable length

    INPUT CABLE 1M

    Weight

    7.0kg (NO charging gun)

    Electrical Specification

    Input voltage

    220V

    Frequency

    45-65Hz

    Power rating

    7KW

    Measurement accuracy

    OBM 1.0

    Output voltage

    AC220±20%

    Output current

    32A

    Standby power

    3W

    Function

    Indicator light

    YES

    Display

    NO

    Protection

    Design standard

    IEC 61851

    Protection

    Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA leakage protection

    Operating Environment

    Working temperature

    -40-+65℃

    Working Humidity

    5%-95% no condensation

    Working altitude

    ≤3000m

    IP grade

    ≥IP65

    Cooling mode

    Natural cooling

    Applicable

    Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration

    Special protection

    UV resistance

    MTBF

    ≥100000H

    Optional

    Installation components

    Stand pillar (customize)

    Communication interface

    WIFI/4G/OCPP1.6/LAN (customize)

    RFID

    2 user cards (customize)

    Leakage protection

    Upgrade to Type A 30mA AC (single phase)

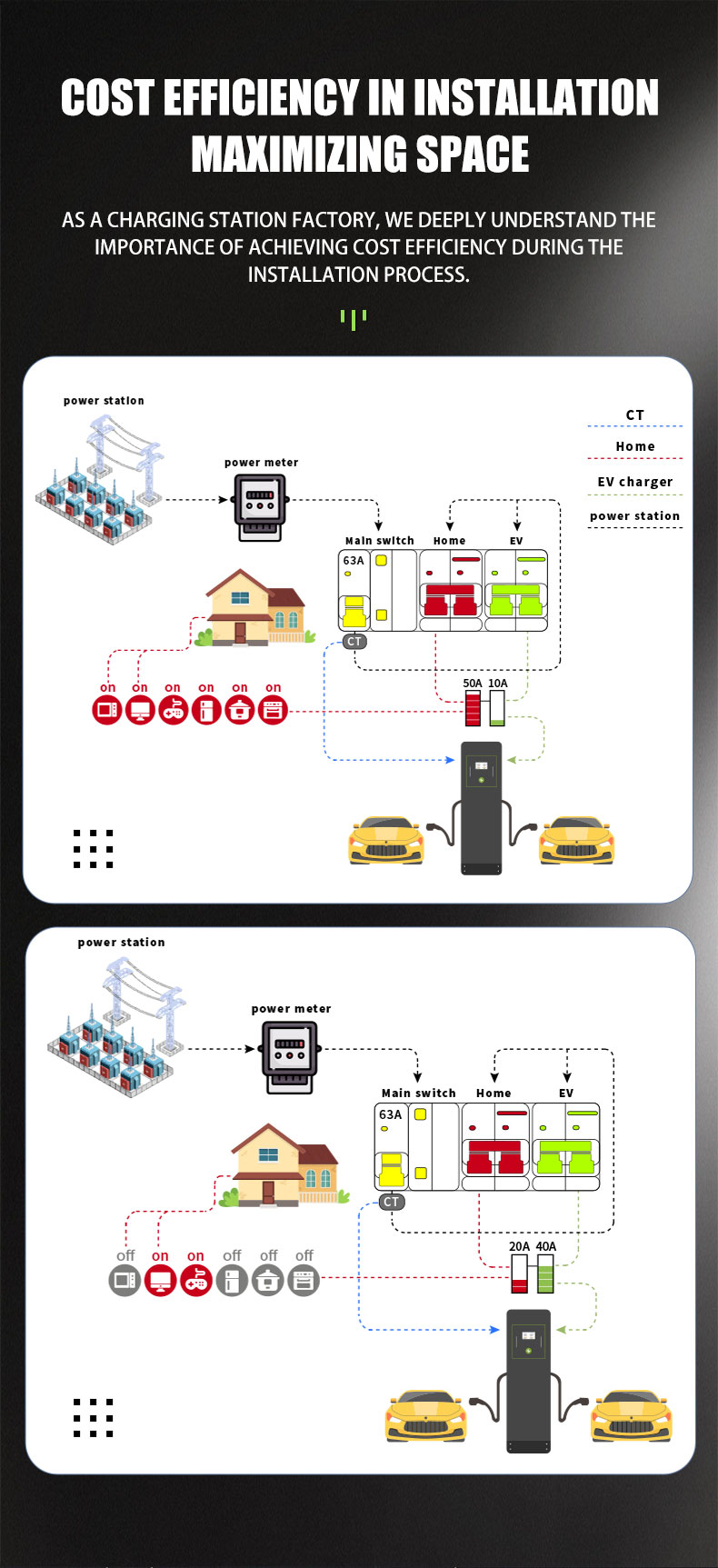

    Home load balancing

    DLB(customize)

    Socket outlet

    Change charging cable to socket(not support SAE standard)

    Product properties

    APP(customize)
