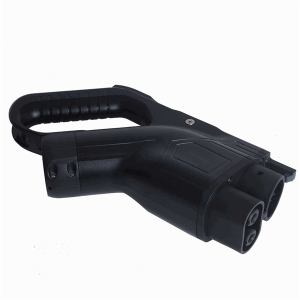

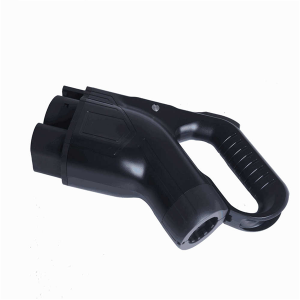

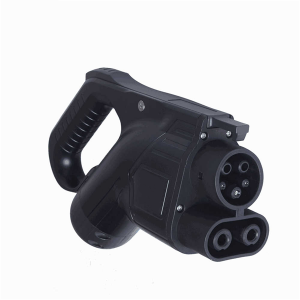

80A 125A 150A 200A CCS 1 Plug DC Fast Charging COMBO 1 Connector for Rapid Charger Station

Short Description:

  • Meet 62196-3 IEC 2014 SHEET 3-IIIB standard
  • Concise appearance, support back installation
  • Back Protection class IP65
  • DC Max charging power: 90kW
  • AC Max charging power:41.5kW

  • Rated Current: 80A / 125A/150A/200A
  • OperationVoltage: DC 1000V
  • Insulation Resistance: >1000MΩ(DC500V)
  • DC Max Charging Power: 127.5KW
  • AC Max Charging Power: 41.5KW
  • Withstand Voltage: 3200V
  • Product Detail

    Product Tags

    Features 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard
    2. Concise appearance, support back installation
    3. Back Protection class IP65
    4. DC Max charging power: 90kW
    5. AC Max charging power:41.5kW
    Mechanical properties 1. Mechanical life : no-load plug in/pull out>10000 times
    2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
    Electrical Performance 1. DC input: 80A, 150A , 200A1000V DC MAX
    2. AC input: 63A 240/415V AC MAX
    3. Insulation resistance:>2000MΩ(DC1000V)
    4. Terminal temperature rise:<50K
    5. Withstand Voltage:3200V
    6. Contact resistance: 0.5mΩ Max
    Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
    2. Pin:Copper alloy,silver + thermoplastic on the top
    Environmental performance 1. Operating temperature: -30°C~+50°C
    Model selection and the standard wiring
    Model Rated current Cable specigication Cable Color
    HY-CSS1-EV150P 150Amp 2 X 50mm²+1 X 6mm² +6 X 0.75mm² Orange or Black
