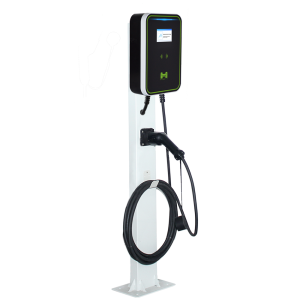

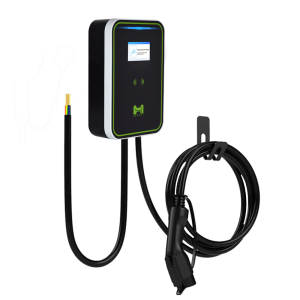

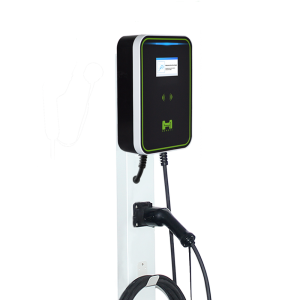

HENGYI OCPP EVSE EV charging station electric vehicle charger 7kw 22kw

Short Description:

The Dark Horse series of electric vehicle AC charging stations can provide safe and reliable charging services for electric vehicles with Type 2 standard interfaces. The AC charging station refers to a special power supply device that provides AC power to electric vehicles through conduction, and can provide AC power to the on-board OBC.

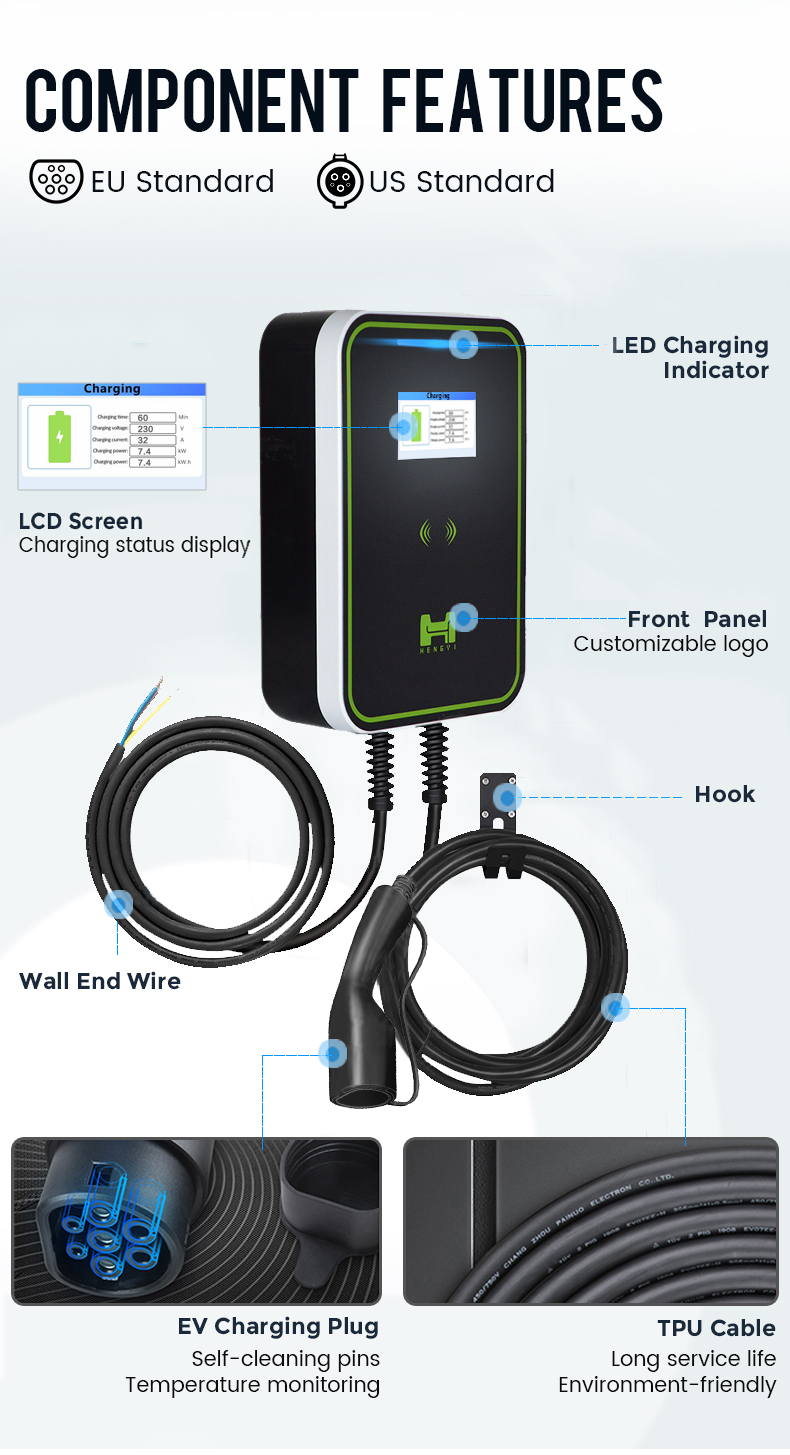

The Dark Horse series of AC charging stations for electric vehicles are mainly composed of RFID card readers, metering units, control units, charging connectors, and various protection modules.

RFID card reader: identify and verify user information and start or stop charging;

Measuring unit: record the charging power;

Control unit: sampling, processing and control of system charging;

Charging connector: Type 2 standard interface;

Protection unit: multiple protection functions such as over (under) voltage, overload, short circuit and leakage;


  • Rated power: 7kw/22kw
  • AC input output voltage: 230 VAC ± 10% / 400 VAC ± 10%
  • Charging connector: Type 2 / Type 2(3P)
  • HM Interface: 4.3 inch LCD screen
  • Product Detail

    Product Tags

     Product parameters

    1 Electrical parameters

    1

    Product model No.            SEVK-1-22-7-C-06-EU SEVK-1-38-22-C-06-EU

    2

    Input power connection     L +N + PE 3Ph + N + PE(L1, L2, L3, N, PE)

    3

    AC input voltage           230 VAC ± 10% 400 VAC ± 10%

    4

    AC input frequency        50/60 Hz 50/60 Hz

    5

    AC output voltage         230 VAC ± 10% 400 VAC ± 10%

    6

    Rated operating current     32 A 32 A (3P)

    7

    Charging connector        Type 2 Type 2(3P)

    8

    Rated power              7 kW 22 kW

    9

    Over-voltage protection     276 VAC 480VAC

    10

    Input under-voltage    protection               204 VAC 355VAC

    11

    Output over current protection               35.2 A

    12

    Leak current protection     20 mA

    13

    Cable length              Type C Nominal 3.5 meters

    14

    HM Interface             4.3 inch LCD screen

    15

    Safety standards           IEC 61851

    16

    Back-end Communication protocol                 OCPP 1.6

    17

    RFID system           RFID ISO 14443A, MIFARE DESFire EV1

    18

    Internet connection        4G 、Ethernet、Wi-Fi

    19

    Energy meter             EU MID Approved Energy meter

    20

    Certification              CE

    21

    Dimension               285*150*410mm(W*D*H)

    22

    Weight                  8kg



    2 Environmental parameters

    1

    Degree of protection IP 65

    2

    Operating temperature -25~55℃

    3

    Storage temperature -40~70℃

    4

    Relative humidity 5% ~ 95%, non-condensation

    5

    Altitude ≤ 2000 m

    6

    Cooling Natural

    7

    Usage Ambient Indoor or Outdoor

    8

    Operating environment No conductive dust, non-corrosive gas, non-explosive gas, no strong vibration

    详情页appRFIDocpp 详情页枪线款 详情页通用1 详情页通用2
