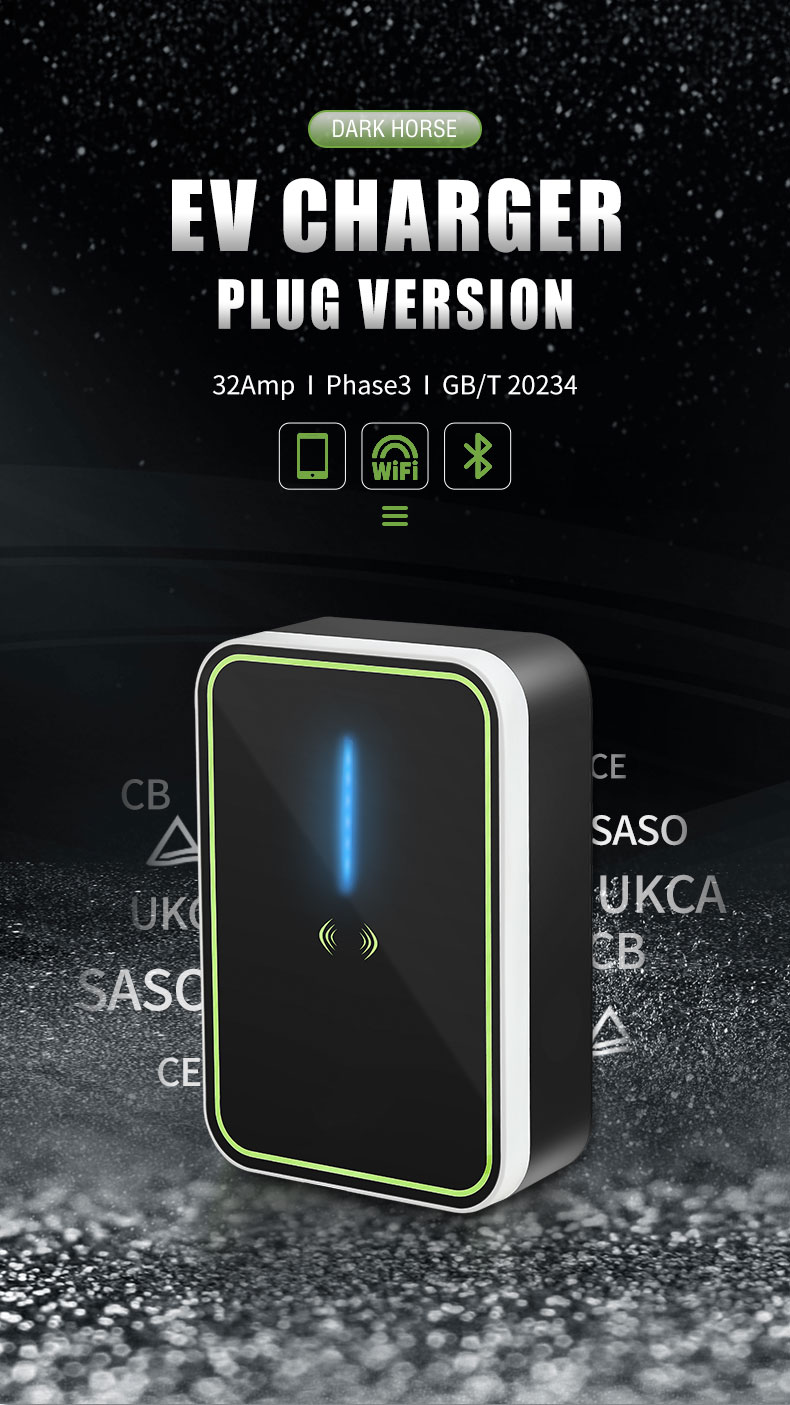

EV Charger GB/T 32A 3 Phase Electric Vehicle Car Charging Station EVSE Wallbox with Cable 22KW for BMW for Nissan

Short Description:

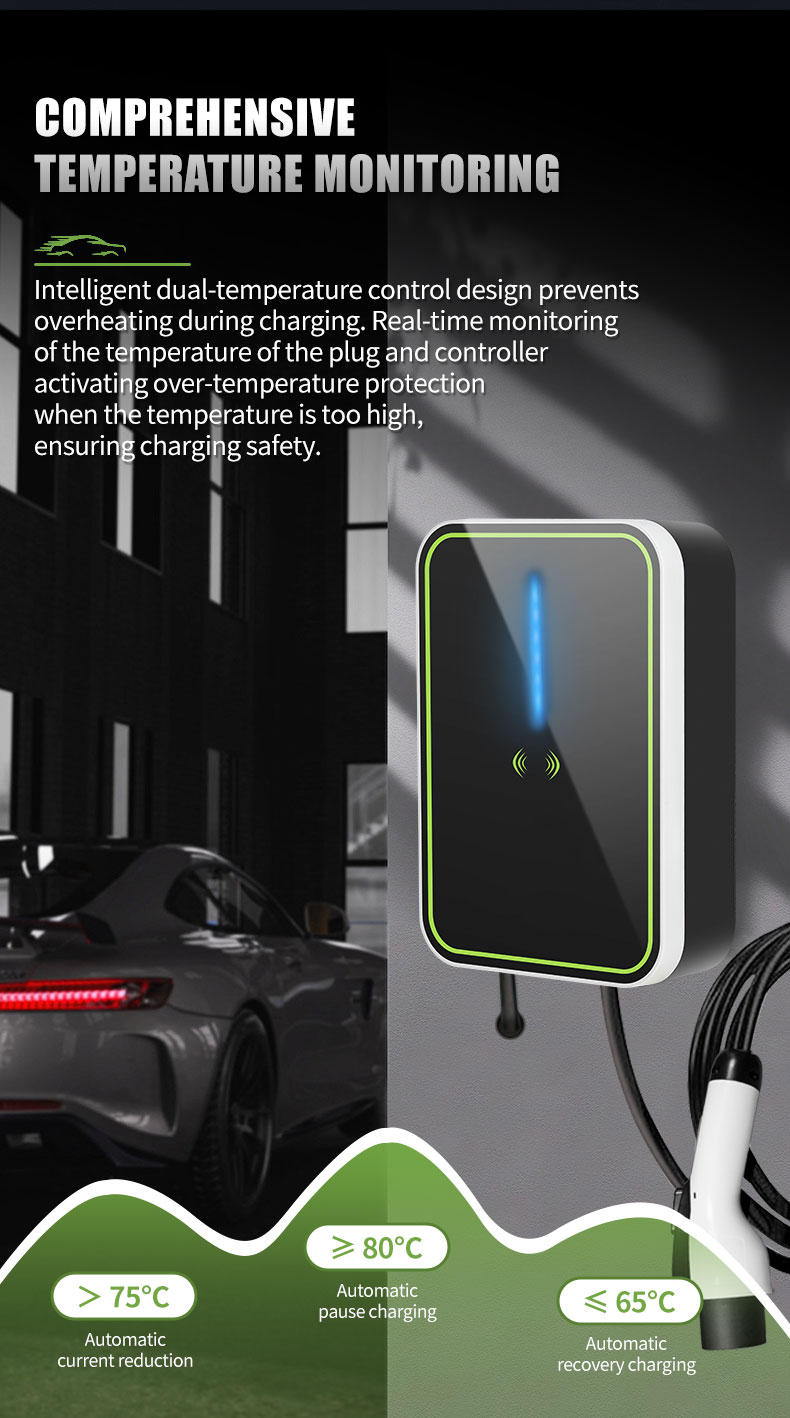

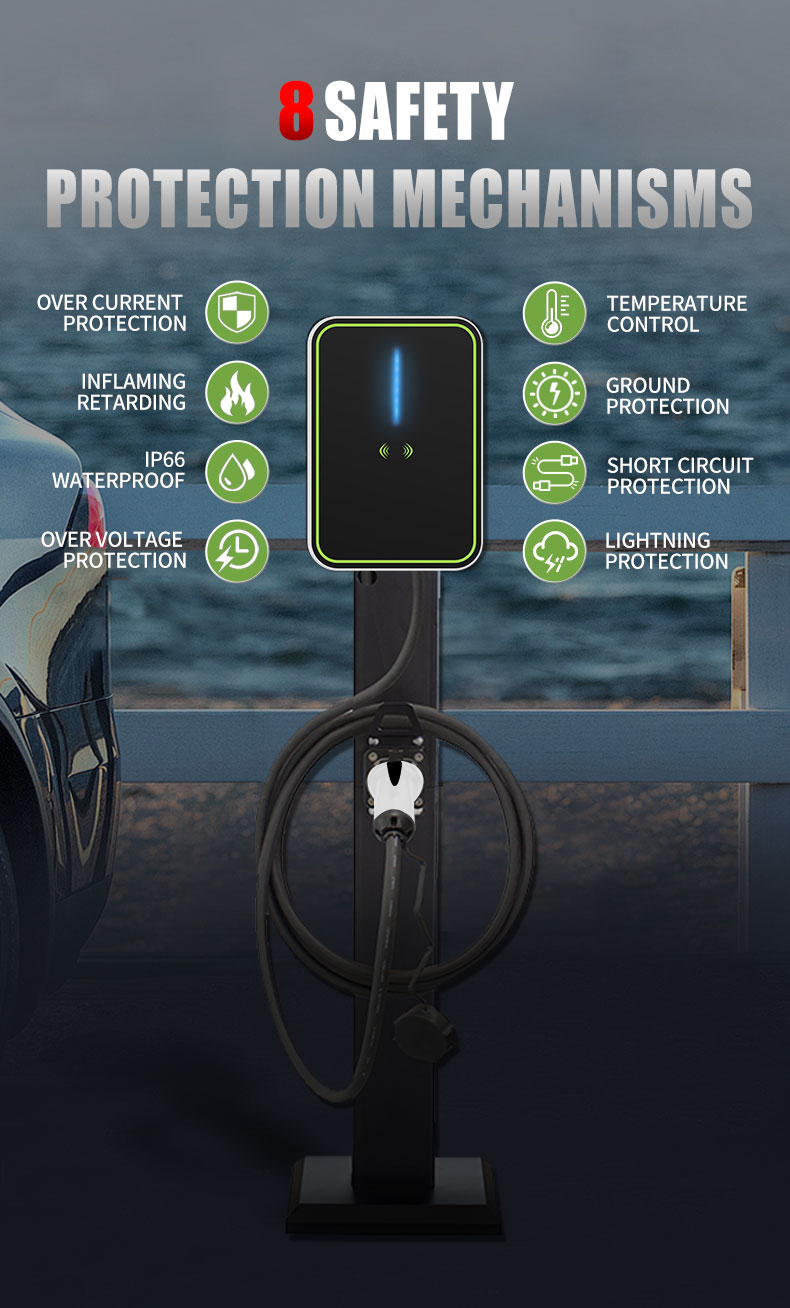

The EV Charger 32A GB/T 20234 380V,casing colours available in black and white, customised casing colours and charging string lengths available for larger orders. Compatible with GB/T 20234 , Designed with safety in mind, there are protection mechanisms forover-current,over-voltage andover-temperature problems, with a aggregate of 8 safety measures to cover the device and the auto during charging. The casing is made of ABS PC injection moulding and has a fire standing of UL94V_0. The factors of the main board are handed in well- known manufacturers, with dependable quality. The main control MCU is characterised by low power consumption, high performance and high integration. The operating temperature covers-40 °C-85 °C, which can meet the harsh working terrain.The EV charging string is made of high chastity bobby with excellent electrical conductivity, slow heating of the captain during high current charging and long operating time. The external cover is made of high quality cable, which is resistant to erosion and low temperatures, so that the charging string won’t harden due to low temperatures and help the device from working duly. Easy to install, it’s recommended to use hard wiring for the input power string. The installation height of the charging device is about1.5 M from the ground. a hook is included to store the ev charging string.




  • Dimension: 350(H) × 240(W) × 95(D)mm
  • User Interface: Indicator light

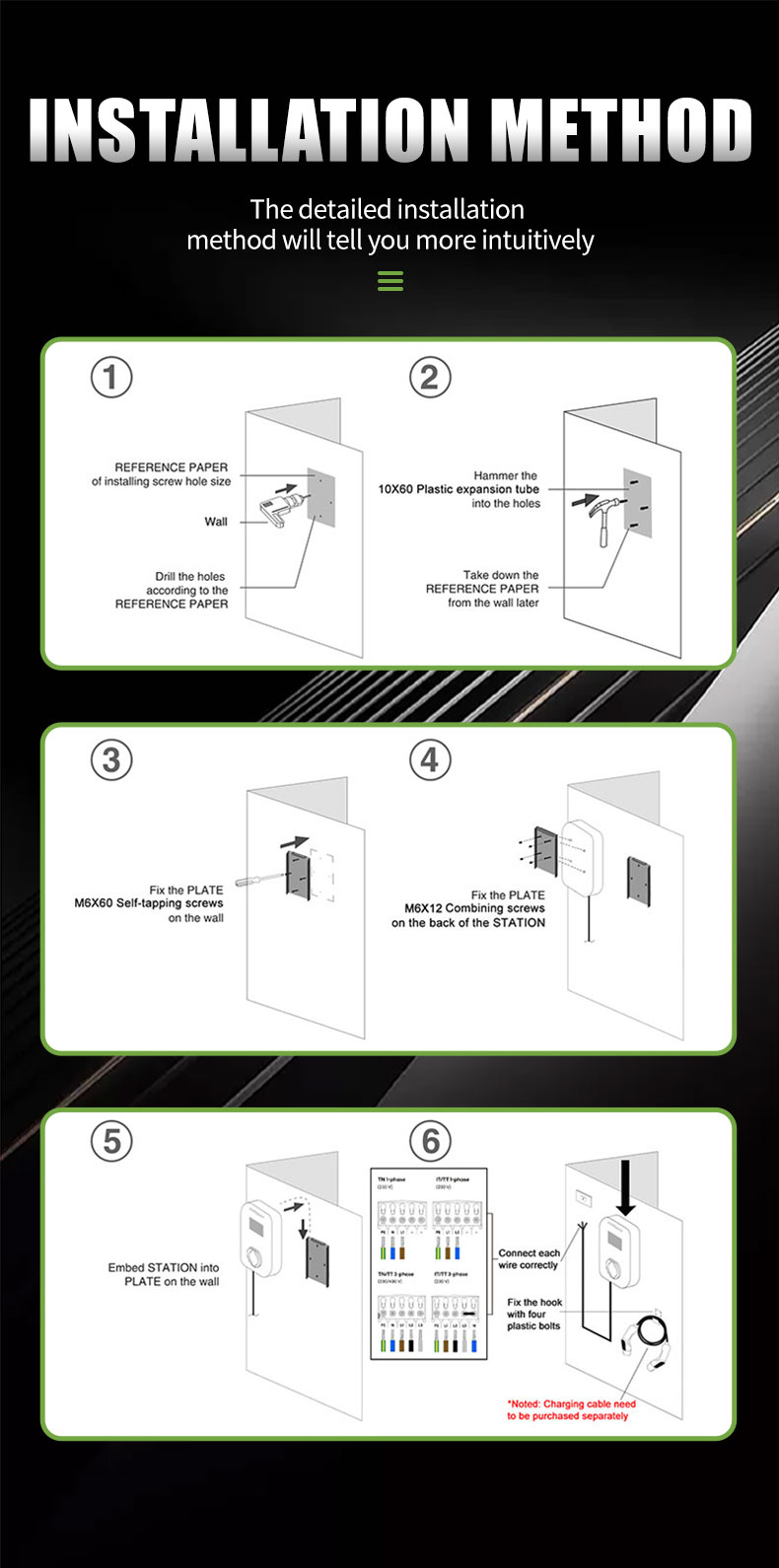

  • Installation method: Wall-mounted Type/Floor-standing Type Installation
  • Cable length: 5M(16.4FT) standard,7.5m / 10m or other size customizable
  • Weight: 8.0kg (Including charging gun)
  • Input voltage: 380V

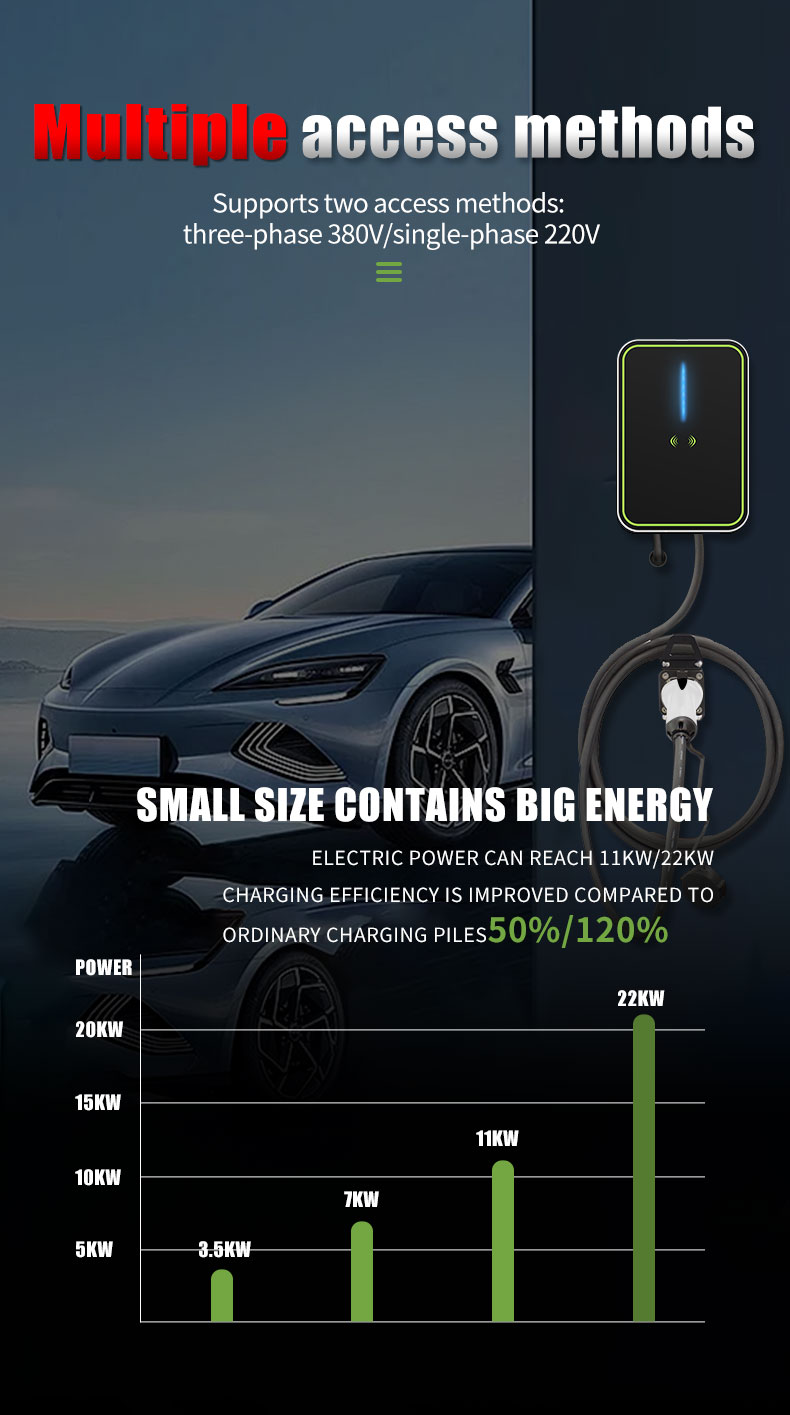

  • Power rating: 22KW
  • Output voltage: AC380±20%
  • Output current: 32A
  • Design standard: GB/T 20234
  • Product Detail

    RELATED VIDEOS

    Product Tags

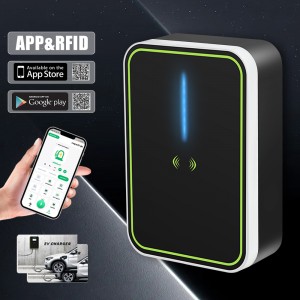

    Dark Horse AC electric car charger 22KW is in an elegant design. It follows GB/T 20234, 22KW, 380V, 32A, 3 functions optional such as plug and plays/ RFID card authorization/APP make it very suitable for home charging. High performance charging control board of our best 22KW EV charger is compatible with all styles of electric vehicle charging. Leakage protection , Upgrade to Type A 30mA AC + 6mA DCthree phaseand IP65 waterproof and UV protection ABS casing ensure trustability and safety. It provides customers with quality, security and a friendly charging experience.

    Structure Appearance

    Dimension

    350(H) × 240(W) × 95(D)mm

    User Interface

    Indicator light

    Installation method

    Wall-mounted Type/Floor-standing Type Installation

    Wiring method

    Bottom enter&out

    Cable length

    5M(16.4FT) standard,7.5m / 10m or other size customizable

    Weight

    8.0kg (Including charging gun)

    Electrical Specification

    Input voltage

    380V

    Frequency

    45-65Hz

    Power rating

    22KW

    Measurement accuracy

    OBM 1.0

    Output voltage

    AC380±20%

    Output current

    32A

    Standby power

    3KW

    Function

    Indicator light

    YES

    Display

    NO

    Protection

    Design standard

    GB/T 20234

    Protection

    Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA + 6mA DC leakage protection

    Operating Environment

    Working temperature

    -40-+65℃

    Working Humidity

    5%-95% no condensation

    Working altitude

    ≤3000m

    IP grade

    ≥IP65

    Cooling mode

    Natural cooling

    Applicable

    Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration

    Special protection

    UV resistance

    MTBF

    ≥100000H

    Optional

    Installation components

    Stand pillar (customize)

    Communication interface

    WIFI/4G/OCPP1.6/LAN (customize)

    RFID

    2 user cards (customize)

    Leakage protection

    Upgrade to Type A 30mA AC + 6mA DC(three phase)

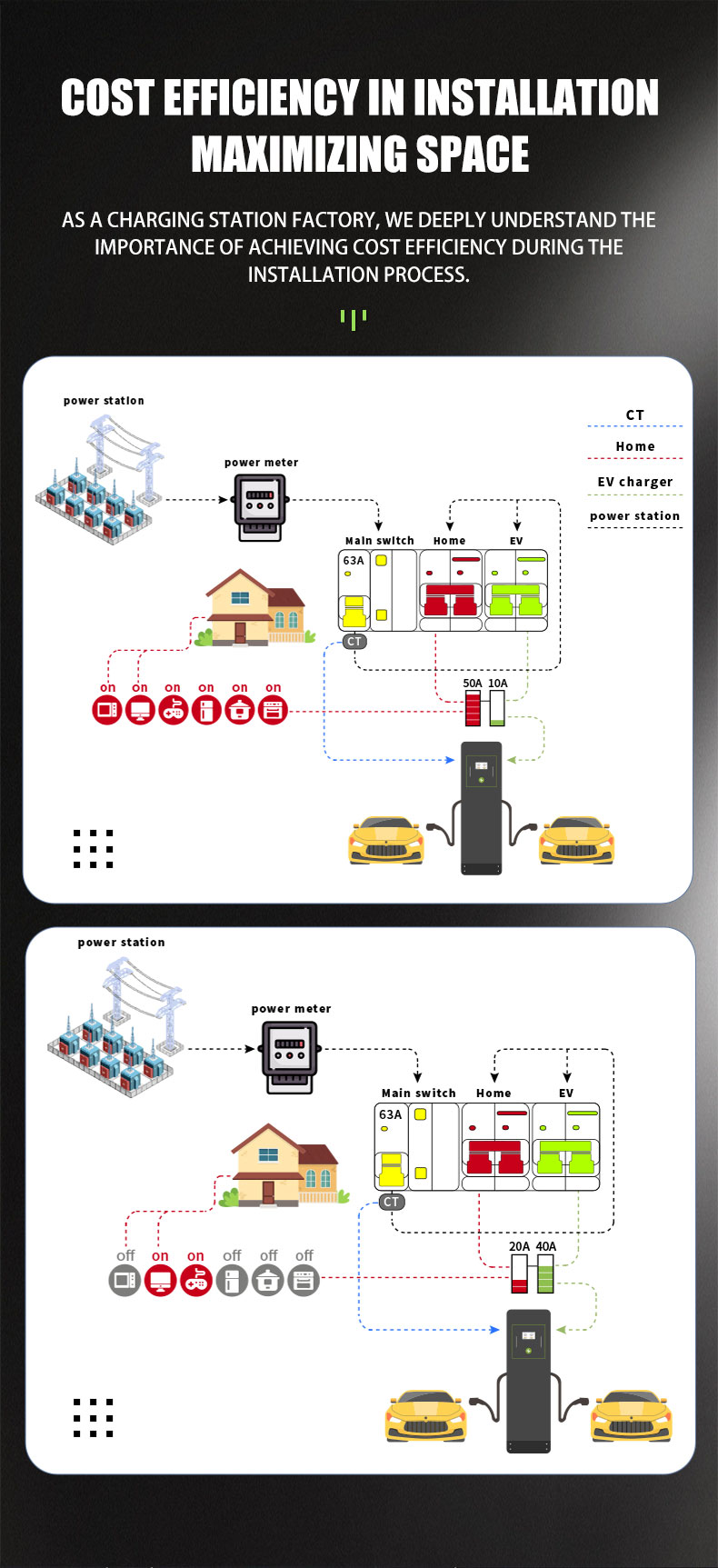

    Home load balancing

    DLB(customize)

    Socket outlet

    Change charging cable to socket(not support SAE standard)

    Product properties

    APP(customize)

    中性黑马抢线详情页(国标)_01 中性黑马抢线详情页(国标)_03 中性黑马抢线详情页(国标)_04 中性黑马抢线详情页(国标)_05 中性黑马抢线详情页(国标)_06 中性黑马抢线详情页(国标)_07 中性黑马抢线详情页(国标)_08 中性黑马抢线详情页(国标)_09 中性黑马抢线详情页(国标)_10 中性黑马抢线详情页(国标)_11 中性黑马抢线详情页(国标)_12 中性黑马抢线详情页(国标)_13 中性黑马抢线详情页(国标)_14
