Professional Design 16 AMP 11kw Type 2 Wallbox EV Charger Station with LCD Screen for Home EV Charging Point

Short Description:

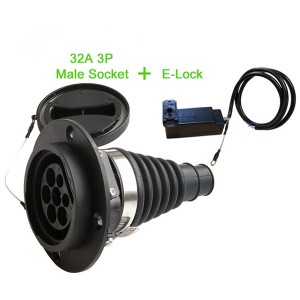

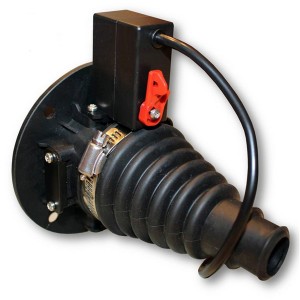

Three Phase 32Amp Type 2 inlets Male EV Charger Socket for Electric Car Charger DSIEC2f-EV32S With the first-class merchandise, excellent service, fast delivery and the best price, we’ve won highly praise foreign customers’. our prosperous working experience and thoughtful solutions, now we have been regarded to be a dependable supplier for lots of intercontinental prospective buyers.

Rated current: 16A 32A Three Phase

Operating voltage: 240V AC

Insulation resisitance: >1000MΩ(DC500V)

Therminal temperature rise: <50K

Withstand voltage: 2000V

Working temperature: -30°C ~+50°C

Contact impedance: 0.5m Max

Send email to us

Product Detail

Product Tags

Persisting in “High good quality, Prompt Delivery, Competitive Price”, we now have established long-term cooperation with shoppers from both of those overseas and domestically and get new and outdated clients’ superior comments for Professional Design 16 AMP 11kw Type 2 Wallbox EV Charger Station with LCD Screen for Home EV Charging Point, We always deliver most effective quality items and superb company for the majority of company users and traders . Warmly welcome to hitch us, let’s innovate jointly, and fly dreams.
Persisting in “High good quality, Prompt Delivery, Competitive Price”, we now have established long-term cooperation with shoppers from both of those overseas and domestically and get new and outdated clients’ superior comments for 16 Amp Level 2 Charger, China Evse and IEC 62196-2 Type2, Our company has a skillful sales team, strong economic foundation, great technical force, advanced equipment, complete testing means, and excellent after-sales services. Our products have beautiful appearance, fine workmanship and superior quality and win the unanimous approvals of the customers all over the world.
Detailed dimensions

Features

1. Meet 62196-2 IEC 2010 SHEET 2-IIf standard

2. Nice appearance，with protection cover,support front installation

3. Safety pins insulated head design to prevent accidental diirecrt contact with staff

4 Excellent protection performance,protection grade IP44(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞5000 times

2. Coupled insertion force:>45N<80N

Electrical Performance

1. Rated current：16A/32A

2. Operation voltage： 250V/415V

3. Insulation resistance：＞1000MΩ（DC500V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：2000V

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Pin：Copper alloy,silver + thermoplastic on the top

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model

Rated current

Cable specigication

HYIEC2f-EV16S

16A Single phase

16A Three phase

3 X 2.5mm²+ 2 X 0.75mm²

5 X 2.5mm²+ 2 X 0.75mm²

HYIEC2f-EV32S

32A Single phase

32A Three phase

3 X 6mm²+ 2 X 0.75mm²

5 X 6mm²+ 2 X 0.75mm²

Persisting in “High good quality, Prompt Delivery, Competitive Price”, we now have established long-term cooperation with shoppers from both of those overseas and domestically and get new and outdated clients’ superior comments for Professional Design 16 AMP 11kw Type 2 Wallbox EV Charger Station with LCD Screen for Home EV Charging Point, We always deliver most effective quality items and superb company for the majority of company users and traders . Warmly welcome to hitch us, let’s innovate jointly, and fly dreams.
Professional Design China Evse and IEC 62196-2 Type2, Our company has a skillful sales team, strong economic foundation, great technical force, advanced equipment, complete testing means, and excellent after-sales services. Our products have beautiful appearance, fine workmanship and superior quality and win the unanimous approvals of the customers all over the world.
