IEC61851 Mode 3 EV Charger (3.5KW,7KW,11KW,22KW) With 16.4FT IEC 62196 charging cable

Short Description:

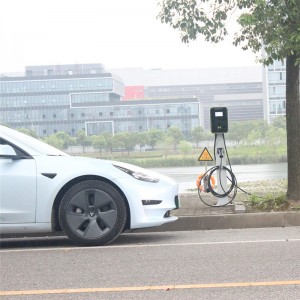

This wall-mounted ev charger is suitable for home charging. It is easy to install, stable and has a complete protection mechanism. The display shows real-time charging data. The charger can also be used in conjunction with a stand for installation in the garden or in an outdoor parking space.

Power: 3.5KW, 7.2KW, 11KW, 22KW

IP rating: IP55

Size: 350(H)*240(W)*95(D)mm

Working temperature: -40°C~+65°C

Customization: Logo,Function,Cable length

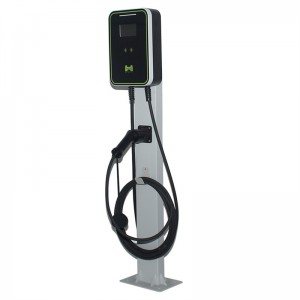

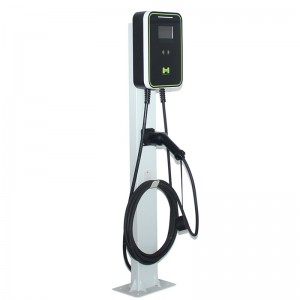

Mounting: wall mounted (default), floor standing (additional accessories required)


Product Detail

Product Tags

Product Detail

This wall-mounted ev charger is suitable for home charging. It is easy to install, stable and has a complete protection mechanism. The display shows real-time charging data. The charger can also be used in conjunction with a stand for installation in the garden or in an outdoor parking space.

Power  3.5KW, 7.2KW, 11KW, 22KW
IP rating  IP55
Size  350(H)*240(W)*95(D)mm
Working temperature  -40°C~+65°C
Customization  Logo,Function,Cable length
Mounting  wall mounted (default), floor standing (additional accessories required)

Product Detail

The Mode 3 EVSE is suitable for residential/domestic use. Based on IEC 61851 and IEC 62196, it has an IP55 protection class and is stable in temperatures from -40°C to +65°C. It is compact and easy to transport, easy to install and durable.

Parameter

Product model

Dark house Ⅰ  Series

Structure

Size(mm)

350(H)*240(W)*95(D)mm

Installation

Wall-mounted Type / Floor-standing Type Installation

Charging cable

5M(16.4FT) standard, 7.5m / 10m or other size customizable

Weight

8.0kg (Including charging gun)

Electrical Specifications

Input voltage

AC220V±20% / AC380V±10%

Frequency rating

45~65HZ

Power rating

3.5KW/ 7KW /11KW /22KW Optional

Measuring accuracy

1.0 grade

Output voltage

3.5/7KW:AC 220V±20%     11/22KW :AC 380V±10%

Output current

3.5KW:16A   7KW:32A   11KW:3*16A   22KW:3*32A

Measurement accuracy

OBM 1.0

Function

Indicator light

Y

4.3 inch display screen

Optional

Communication interface

WIFI/4G/OCPP1.6/LAN Optional

Operating conditions

Working temperature

-40~+65℃

Relative humidity permission

5%~95%(non-condensation)

Maximum altitude permission

≤3000m

IP grade

≥IP55

Cooling way

Natural cooling

Applicable ambient

Indoor/outdoor

ECT

UV resistance

MTBF

≥100000H

55

The EVSE has eight built-in protections: Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,onboard A+6 type leakage protection

Four charging configurations, plug and charge, RFID card charging, APP control, home load balancing.Two types of covers are available, with and without screen, and various ODM solutions are available. Prices may vary for different configurations, please contact us for more information.

Packaging
The EVSE is completely wrapped in an air pillar bag and placed in a 45*37*20cm 5-layer corrugated cardboard box with other accessories and instructions. The carton is blank and we do not leave any information about Hengyi on the packaging.
We also offer to put your logo on the carton, customise the box, instructions, etc.

After Sales
If you have any questions, please contact us and we will reply within 24 hours.
